Pumps and Compressors

25May 2014

Autogas Pumps

The autogas market is unique with its own distinct needs. With the aid of marketers, designers and installers of autogas systems, Corken has designed a pump to meet those needs.

Model FF075 (frame mount)

Corken autogas pumps achieve new levels of performance by delivering more capacity at high differential pressures, non-pulsating and quiet transfer, longer pump life and ease of maintenance. Versatility is a key part of the pump design and makes it a great fit for other applications such as cylinder filling, vaporizer feeding and bulk transfer.

Advantages

Ideal for dual hose dispensers and multiple dispensers	Metric fasteners
ANSI or DIN flanges (DLF vs. DLD)	Ductile iron case
Continuous duty capability	Designed for 50 and 60 Hz
Self-aligning, free-floating impeller	Single mechanical seal
Heavy duty bearings

Mounting Options
The DLF and DLD models are direct mounted with C-face electric motor as shown to the right. The foot mounted version above is mounted on a baseplate and can be direct driven through a coupling to a 2,880/3,600 RPM motor or through a V-belt drive.

Superior Design
The autogas pumps are designed to be extremely quiet and free of vibration and pulsation. The one moving part, the impeller, floats on the shaft without contacting adjacent surfaces, thus extending pump life. These factors contribute to trouble free service and long life exhibited by the autogas pump

Long Life and Ease of Maintenance
The autogas pump has design features and a rugged ductile iron construction for long life. The design of the pump also readily accommodates standard maintenance. The mechanical seal can be replaced in minutes.

25May 2014

Industrial Horizontal Compressors

Applications

The horizontal compressors offer the largest capacity of any of Corken’s compressor lines. This line of compressors can be used for unloading tankers or multiple railcars, wellhead gas recovery, pressure boosting, and gas blanketing.

Options

The modular design of the horizontal compressor allows for various combinations of cylinder sizes with up to 4 stages of compression. Corken currently offers 8″ (203.2 mm), 6″ (152.4 mm), 5″ (127 mm), 4″ (101.6 mm), 3¼” (82.6 mm), and 2¾” (69.9 mm) cylinders. Most of these cylinders are available in a water-cooled version. Various other options such as variable clearance heads, corrosion resistant coating, and external crankcase oil cooler are also available.

Features

Modular construction
Low vibration design
Heavy duty cylinder design
Self-lubricating piston and rider rings
Simple to Service
Smooth quiet operation
Rings & Packing can be replaced without moving the cylinder

Engineered Packages

Custom-engineered skid-mounted units can be supplied with control panels, wiring, ASME code liquid traps and other special accessories as required.

Selection
Due to the versatility of the various cylinder combinations, the horizontal compressors provide a full range of capacities up to 414 cfm (703.5 m3/hr) with maximum working pressures of up to 4,500 psig (310.3 bar).

25May 2014

Industrial New Chlorine Compressors

Applications
These compressors were specifically designed for applications involving the transfer and recovery of Chlorine. Railcar unloading is the most typical application although these compressors are also used in the recovery residual vapors, and pressure boosting. Corken’s T-style design is incorporated in order to provide precise leakage control.

Options
Corken supplies custom engineered packages as well. Skid mounted units can be supplied with control panels, safety controls, receiver tanks, liquid traps, and other special accessories as required.

Features

ANSI flanges
Oil-free design
Special cleaning and corrosion resistant coating on all wetted parts
Special purge kit
All nylon, aluminum, or 300 series stainless steel are replaced with compatible materials
Packing and valve springs are constructed of Inconel 750
High-efficiency valves
Two compartment distance piece
Tapped openings in crankcase for purging or venting
Special Nitrogen test/purge/pad process

Double Distance Piece (T-Style)
Designed for improved leakage control, this option has three separate sets of packing per piston rod which effectively form two distinct distance pieces or barriers to external leakage. Each distance piece has its own line connections and can be separately pressurized, purged or vented to provide a wide range of application flexibility. For added convenience, purge kit options are available that include all the accessories needed to control the purging or pressurization of each chamber.

Selection
Corken’s Chlorine compressors provide a range of piston displacements from 8 to 35.5 cfm (13.6–60.3 m³/hr).

25May 2014

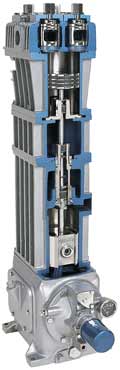

Industrial T-Style Compressors

T491 Compressor

Applications

T-style compressors can handle the same applications as a D-Style compressor. These include transfer of liquids between tanks, off-load/load out liquids, recover residual vapor, pressure boosting, etc. The T-style, however, offers the advantage of precise leakage control. The T-style compressor was designed to provide maximum leakage control when handling toxic, hazardous, and explosive gases.

Options

Corken offers a broad range of material options. Corken also offers various corrosion resistant coatings, valve options, and equipment configurations. Corken supplies custom engineered packages as well. Skid mounted units can be supplied with control panels, safety controls, receiver tanks, liquid traps, and other special accessories as required.

Features

Two compartment distance piece
Threaded and ANSI flanges
Oil-free design
Self-lubricating teflon piston rings
Ductile iron construction
Positive piston rod/packing alignment
O-ring gaskets
High-efficiency valves
Purge or pad capability

Double distance piece (T-Style)
Designed for improved leakage control, this option has three separate sets of packing per piston rod which effectively form two distinct distance pieces or barriers to external leakage. Each distance piece has its own line connections and can be separately pressurized, purged or vented to provide a wide range of application flexibility. For added convenience, purge kit options are available that include all the accessories needed to control the purging or pressurization of each chamber.

Serviceability

Corken compressors are designed to minimize required maintenance and make such maintenance extremely simple. Valve replacement may be accomplished without disturbing the piping and ring replacement may be accomplished by simply removing the head.

Selection

Corken offers a broad range of models and corresponding piston displacements. The oil-free units range from 7 to 60 cfm (11.9-102 m³/hr). Depending on the compression ratio, Corken provides either single- or two-stage compressors for efficient gas compression.

25May 2014

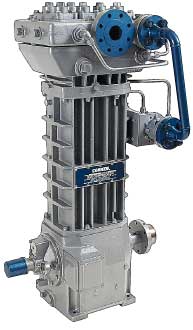

Industrial D-Style Compressors

Applications

Compressors are extremely versatile. They can be used to transfer liquids between tanks, off-load/load out liquids, recover residual vapor, pressure boosting, gas blanketing, gas gathering, evacuate vapors for maintenance purposes, etc.

Options

Features

Threaded and ANSI flanges
Oil-free design
Self-lubricating Teflon piston rings
Ductile Iron Construction
Positive piston rod/packing alignment
O-ring gaskets
High-efficiency valves

Serviceability

Selection

Corken offers a broad range of models and corresponding piston displacements. The oil-free units range from 4 to 60 cfm (6.8-102 m3/hr) and the double acting versions are capable of between 50-100 cfm (100-171m3/hr). Depending on the compression ratio, Corken provides either single- or two-stage compressors for efficient gas compression.

25May 2014

Industrial SC-Series Side Channel Pumps

Corken SC-Series pumps are a rotary side channel design. They produce a maximum differential head of 1,150 ft (350 m). The side channel pump is offered in six different sizes, each ranging from one to eight stages. This provides for a wide range of pressures and capacities ranging from 1gpm to 185 gpm (3.8–700 L/min). These pumps can handle discharge pressures up to 580 psig (40 bar).

Product Features

Radial vane impellers and two outlet openings per stage allow for high vapor content
Enclosed centrifugal impeller at pump suction provides improved NPSH capabilities
Exceptional in light liquid and liquefied gas transfer
Floating Impeller – No metal to metal contact.
Modular design
Smooth continuous flow

Product Options

Magnetic Drive (shown)
Stainless steel construction
Double seal option
High Temperature options
Bronze or steel impellers
DIN spec or ANSI drilled flanges

Versatility

Corken’s SC Series pumps have provided solutions for a good number of problematic applications over the past 6 years. The capability of this pump to handle NPSH (Net Positive Suction Head) as low as 1 ft coupled with its ability to pump liquids with high vapor content have made it particularly attractive to many of our customers.

25May 2014

Industrial Coro-Flo Pumps

Corken Coro-Flo^® pumps are a regenerative turbine design. They produce a maximum differential pressure of 150 psig (10.3bar g). Corken manufactures six sizes of Coro-Flo pumps, ranging from 2 to 35 gpm (7.5 – 132 L/min). These pumps can handle discharge pressures up to 400 psig (27.6 bar). These pumps are designed for continuous duty on light liquids.

Product Features

Excellent for low flows and relatively high head pressures
Linear performance curve
Floating Impeller design – No metal to metal contact
Impeller is the only moving part – minimal wear parts
Extremely quiet and free of vibration
Smooth continuous flow
Years of service

Product Options

Material options – stainless steel internals
Optional Integral C-face motor adapter
Various drive options
NPT or ANSI flanged

The DS/DL type Coro-Flo® pumpsare designed to eliminate the need for a baseplate, coupling guard, and coupling alignment which makes the DS/DL series pumps compact and easy to install. The special bracket supports both the pump and the motor so they can be directly coupled.

Long Life and Ease of Maintenance
The Coro-Flo®’s one moving part, the impeller, floats on the shaft without contacting adjacent surfaces, thus extending pump life. This pump series is inexpensive and simple to repair. The pump design allows the seal to be replaced in minutes.

The base plate mounted version is shown to the left. These Coro-Flo pumps are designed to operate at shaft speeds between 2,880 – 3,600 rpm.

25May 2014

Industrial Coro-Vane Series Pumps

Corken manufactures variations of its positive displacement, sliding vane design for various applications. Each of these offers unique features for the transfer of hazardous, non-lubricating liquefied gases and low viscosity liquids. For more information, review the various pump styles offered by Corken below.

Low Pressure CP Series Pumps: These pumps are designed for operating pressures up to 200 psi (13.8 bar) and flow rates up to 400 gpm (1,514 L/min). They are ideal for various petroleum products with low vapor pressures such as petroleum based oils and fuels. These pumps are also capable of handling numerous thin liquids such as alcohols or solvents.

High Pressure CD Series Pumps: These pumps are designed with a ductile iron construction for operating pressures up to 400 psi (27.6 bar) and flow rates up to 400 gpm (1,514 L/min). They are ideal for applications involving liquids at elevated pressures such as liquefied gases. CO2, ammonia, and various freons are examples of such liquefied gases. These sliding vane pumps were specifically designed for the transfer of such liquids.

Magnetic Drive Series Pumps: These pumps are offered in CP and CD versions which cover the range of operating pressures described above only with a seal-less design. This magnetic drive pump is ideal for pumping hazardous, toxic, foul smelling or other difficult to seal thin liquids.
